Single Bellows

The BSIV™ range of single cartridge mechanical seals has been designed as a value-for-money, high-performance sealing solution for general applications. Inventoried in SHS bellows materials. Other material combinations are available, including a full, solid alloy 276 bellows and gland arrangement in all ANSI sizes.

Features:

  • Cartridge design for reliable installation
  • Hydraulically balanced for reduced seal face loading which maximizes seal life and allows for vacuum service capability
  • Sizes available from 1.000" to 3.500" (24mm - 85mm) in standard and ANSI plus gland formats
  • BSIV - Single Bellow Seal

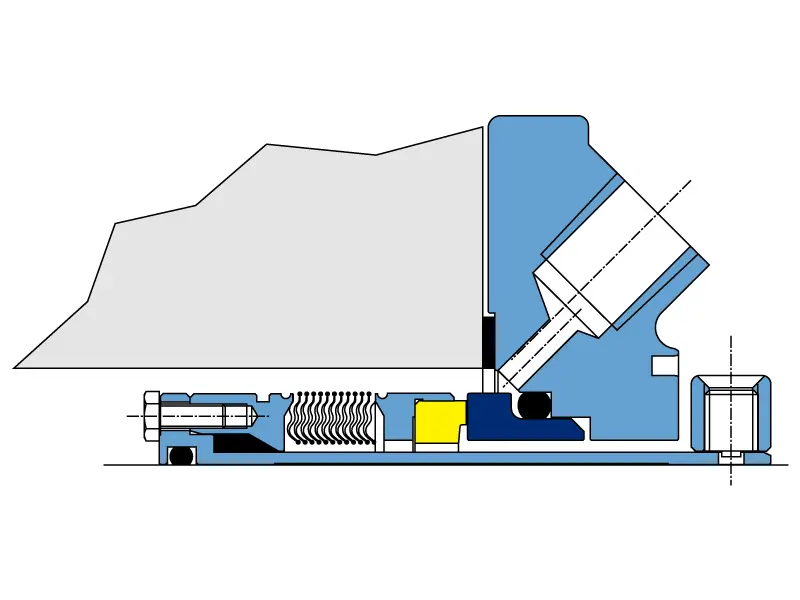

  • BSIV - Cross Section

ATEX Certified

ATEX Certified

ATEX Category 2 (Zone 1/21)
Category 3 (Zone 2/22)

ATEX Category 2 (Zone 1/21)
Category 3 (Zone 2/22)

Enquire about this product

For more information about BSIV or to speak to an AESSEAL® expert.

For information on our privacy practices and commitment to protecting your privacy, check out our Privacy Policy.

50-percent-more-bellows

With 50% more bellows than the industry standard (12 instead of 8) there is less stress on each convolution in the bellows stack which helps increase seal life. AESSEAL® standard bellows material, Alloy 276, has superior mechanical and corrosion resistance properties than other industry standard bellows materials such as 300 series Stainless Steel or Alloy 20. The hydraulically balanced bellows unit is available in a variety of different material options with either elastomer or graphite packing sealing rings.
