Gland Packing

AESSEAL® offers a selected range of gland packing that have been specifically designed and manufactured to reduce plant operational maintenance costs.

The cost of packing is low when compared to the cost of down time of a plant incorporating machinery wear, product loss, gland maintenance and labour. Therefore, it is of the utmost importance to select the highest quality modern fiber packing in an inter-braided construction and optimized profiles to provide the most resilient, long-lasting packing sealing solution.

We understand that size is the key performance factor for all packing applications.

That's why all our packing bears the SPC quality seal, which guarantees manufacturing precision and size continuity, and uses the most advanced and enduring inter-braid construction.

AESSEAL® packing displays an exceptional level of resilience and conformity of volume.

Their high quality design and construction requires less pressure on the gland to form the seal, which leads to less wear on the equipment, less maintenance and most importantly, increased packing life span. The advanced technological developments of the newer synthetic fibers, together with the braid construction, allow packing to be manufactured which give a superior performance. The synthetic fiber packing is far more cost effective and greatly reduces operational costs, which are the most important factors when considering gland packing selection.



Use the Packing navigation menu to filter through the product range, or take a look at some of our featured products below.



For a quick view of all products, use the  Product index

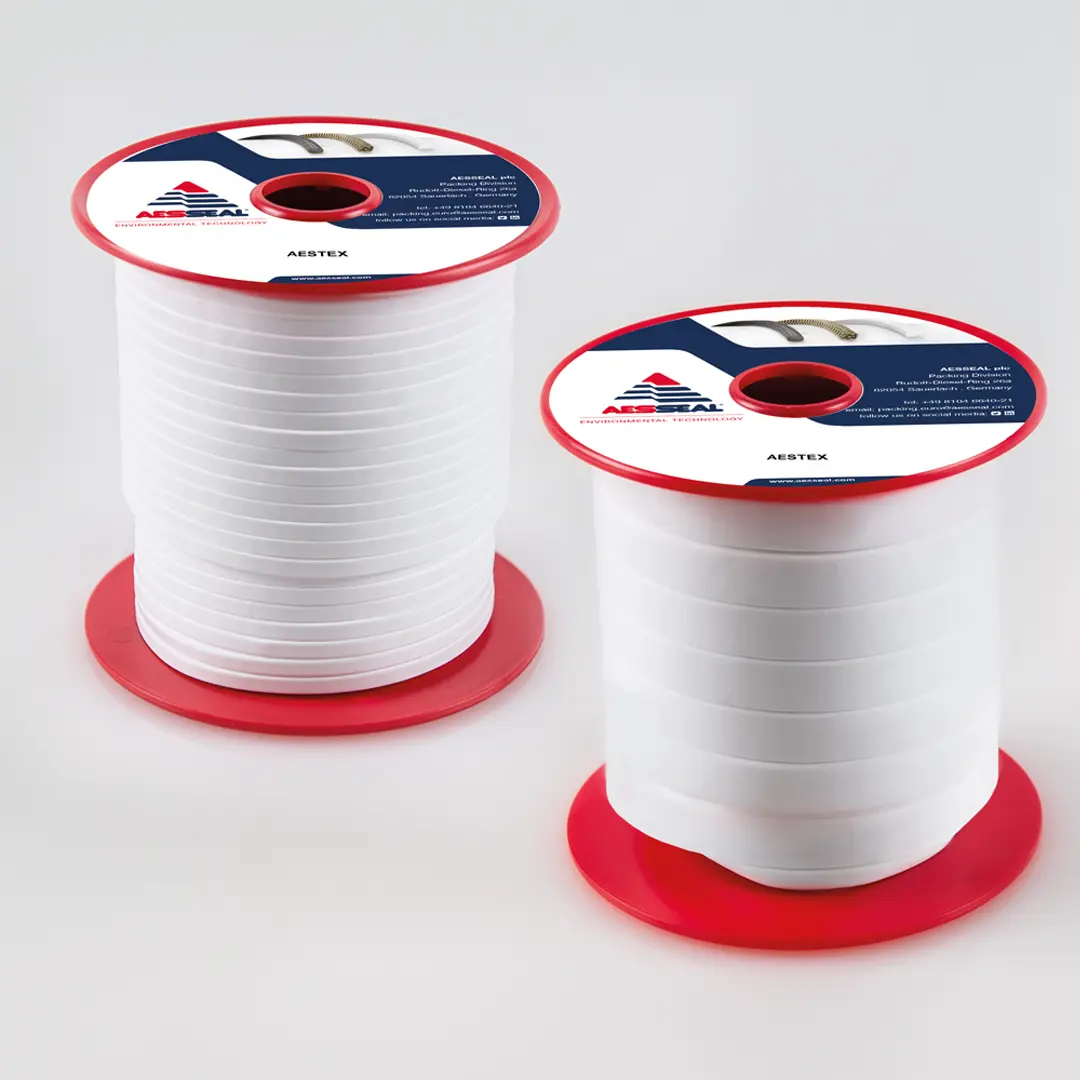

AESTEX Joint Sealant

AESTEX-Joint-Sealant

100% pure e-PTFE (according to VDE-VDI 2480)

100% pure e-PTFE (according to VDE-VDI 2480) in a stretched filament knotted fibre structure. This ensures high-pressure resistance (no cold flow) and a good adaptation to the flange surface.

Custom-made ring sets for pumps, agitators, valves and reciprocating equipment.

Die Formed Packing

Custom-made ring sets for pumps, agitators, valves and reciprocating equipment.

Custom-made ring sets for pumps, agitators, valves and reciprocating equipment. Die-formed and pre-cut rings are today’s user-friendly solution and at the same time provide the best seal result without product waste.

DVS-INJECTSTAR

The Packing Compound System was developed for the pulp and paper and the chemical industries and is suitable for the application in mixers, kneaders and similar equipment.

Pre Throat Bushing

PFR-Throat bushing for stuffing boxes and flush water management.

This throat bushing with spiral grooves and a special flow geometry reduces flush water usage and prevents solids from entering the stuffing box.

STYLE 275-TP Trapezoid Packing

STYLE 275-TP

SLURRYSTAR

Combination braid of expanded PTFE-Graphite and Para-Aramid fibre as corner reinforcement with special pore-filling impregnation.

STYLE-210 - Pump Packing

STYLE-210

100% ParaAramid continuous fibre with PTFE impregnation and a special dynamic run-in lubricant, silicon oil free.

Good for abrasive products, wear-resistant, universal packing particularly suited to the sewage and paper industries

STYLE-250-TP Trapezoid Packing

STYLE-250-TP

Aramid staple fibre with PTFE-blocking agent and silicone-free run-in lubricant.

Volume-stable, pressure-stable, and also usable for fittings. Excellent wear-resistance, suited to abrasive and hardening media.
