Cartridge Single with Integral Bearing

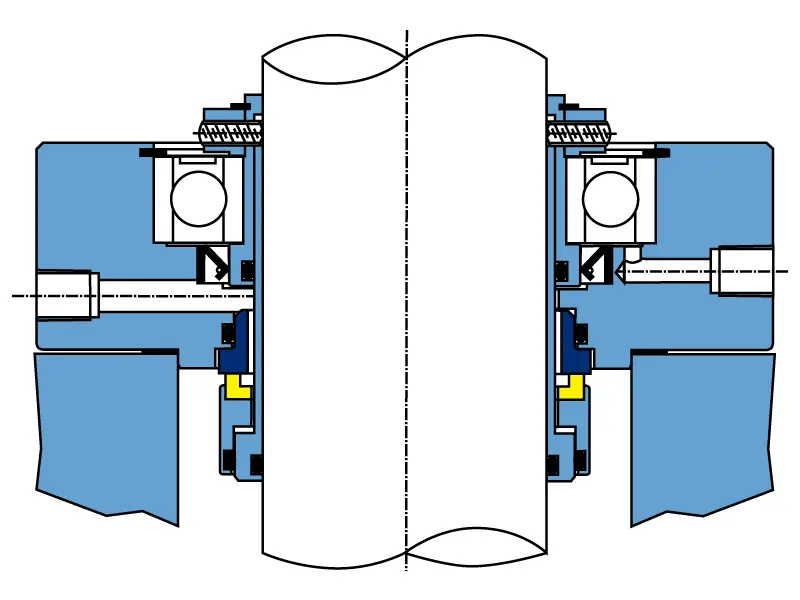

The CSWIB™ (Mixmaster I) is a single cartridge mechanical seal with balanced seal faces and an integral (steady) bearing.

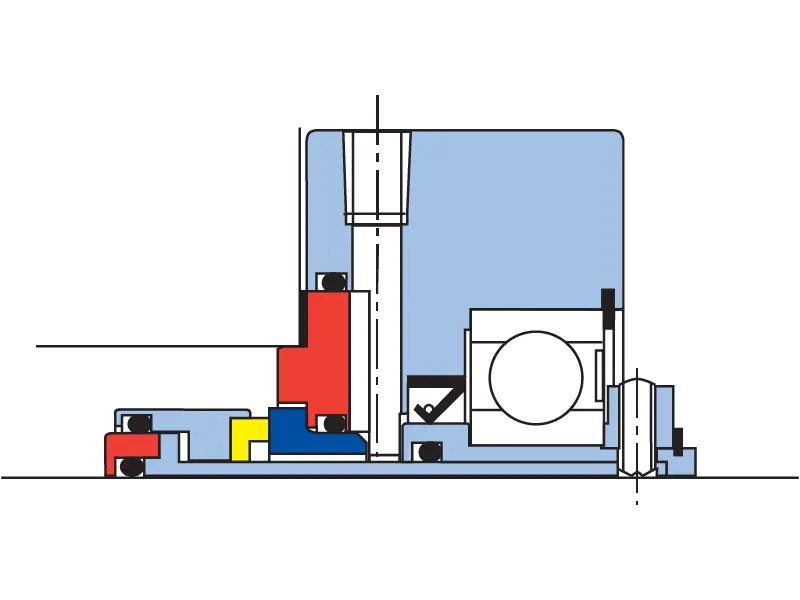

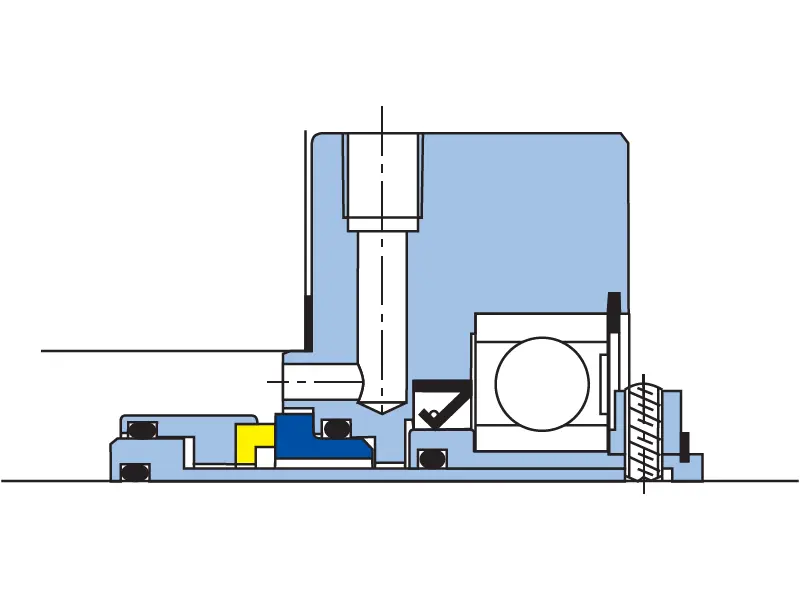

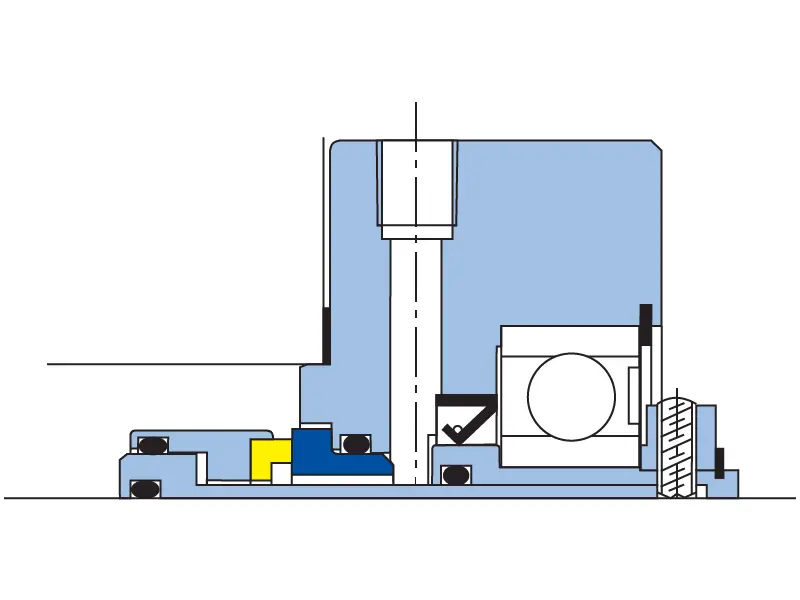

The seal can be ordered in types B, C and D in a variety of gland combinations concerning flush, quench, drain and grease connections and also different face combinations. The gland plate is machined to meet the customer's requirements with respect to outside diameter, bolt circle diameter and stuffing box location.
Features:
- Designed for agitators and mixers
- Fitted with an integral bearing to stabilize shaft and seal faces
- Ideal for use on mixers with long overhanging shafts
- Quench and drain ports can provide cooling or heating to maximize seal life in arduous applications
