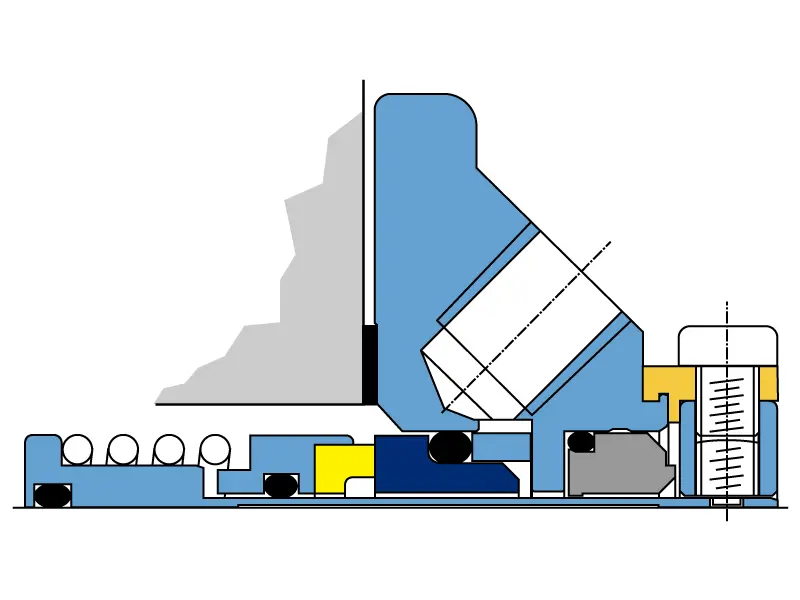

Single Spring Catridge Seal
The TPOC™ seal range is specifically designed for applications which benefit from the use of unbalanced seal face technology.
This makes it ideally suited for some applications in the pulp and paper, slurry and other high-viscous sealing industries. Features include a non-clogging single coil spring and positive mechanical drive.
Features:
- Non-clogging single-coil spring
- Positive mechanical drive
- Available in a wide range of seal face combinations including carbon, TC and SiC
- Available in a wide range of elastomer combinations
- Unbalanced rotary seal face
- Supplied as standard with an outboard restriction bush
- Offered as standard with flush, quench and drain environmental ports

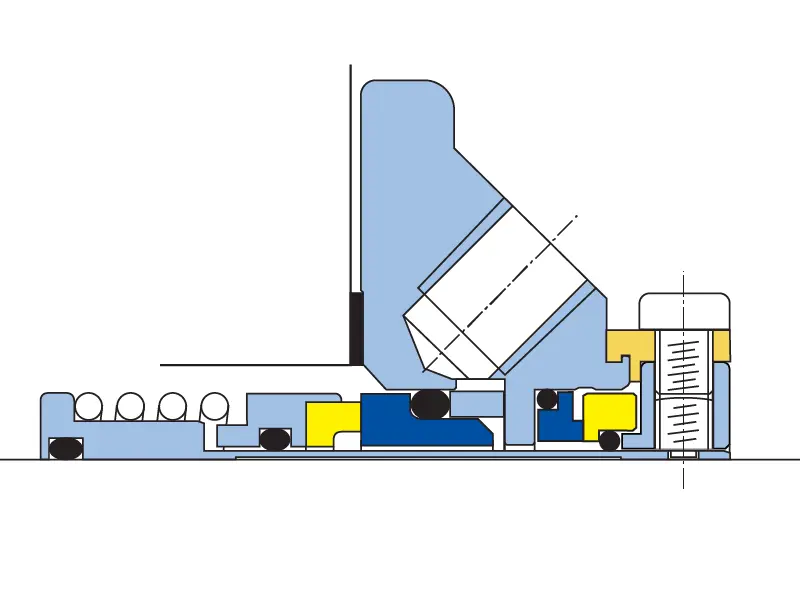

- TPOE™ - a low-duty, outboard, modular seal face option
