Short Cartridge Mechanical Seal

A short externally mounted cartridge seal, with flush ports and self-aligning faces.

With the aid of Finite Element Analysis (FEA), a range of seals were designed to optimize the use of Silicon Carbide. This third generation seal incorporates an improved self-aligning concept and prevents shock damage to Silicon Carbide on start-up, which is the most significant reason for Silicon Carbide damage in other seal designs.

In addition, the spring loaded rotary centrifuges solids away from the seal face and resists clogging, increasing the range of general service applications to include slurries and some abrasives. Faces remain flat, square to the shaft and suspended solids are prevented from crossing the flat seal faces.

  • Easy reliable installation
  • Self-aligning faces
  • Non-clogging internal rotary
  • Reduces power consumption
  • Balanced seal faces
  • SCUSI - Short Cartridge Mechanical Seal

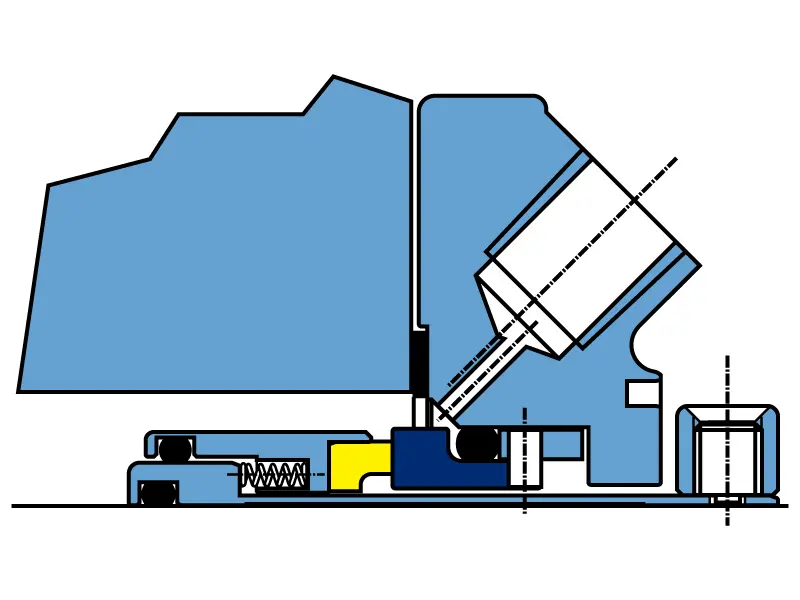

  • SCUSI - Cross Section

Suitable for the following industries

Marine Pump Seals

ATEX Certified

ATEX Certified

ATEX Category 2 (Zone 1/21)
Category 3 (Zone 2/22)

ATEX Category 2 (Zone 1/21)
Category 3 (Zone 2/22)

Enquire about this product

For more information about SCUSI or to speak to an AESSEAL® expert.
