Short Canister Mixer Seal Wet or dry contacting version
The SCMS™ Mixer seal is specifically designed for use on a broad range of mixers, agitators and reactor applications. It is suitable for side entry (flooded) or top entry (running in vapour) mounting. The modular SCMS™ design facilitates both wet and dry running versions.
Features
- Double and single seal for both modern and mature mixer designs
- Suitable for both top or side entry applications
- Reduced height - ideal in situations where space is limited
- Dual balanced design - maintains containments through a range of process fluctuations
- Fail safe protection - independent seal face loading using unique common multi-spring design (patent pending)
- Accommodates up to 4mm of radial movement
- Available with integral bearing
- Optional water cooled mounting flange to extend ATEX limits
- Double seal only - monolithic seal faces and self-adjusting axial movement compensation - common multi-spring design maintains precise face loading to both sides of seal faces
Options
- SCMS-SW™ - Single Wet seal arrangement (liquid lubricated)
- SCMS-DW™ - Double W>et (liquid barrier) seal arrangement intended for use with a API Plan 53 or 54 seal support system

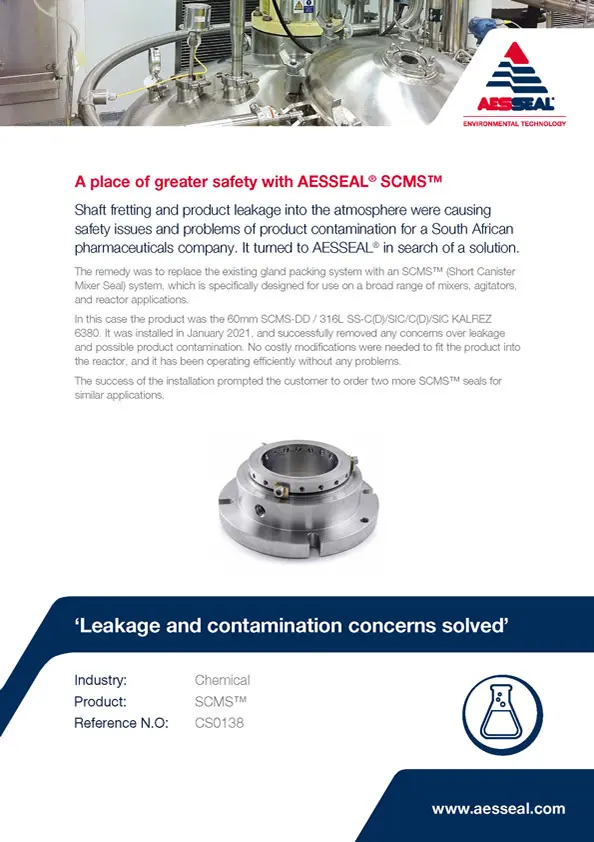

- SCMS-DD™ - Double Dry running contacting configuration intended for use with a API Plan 74 seal support system

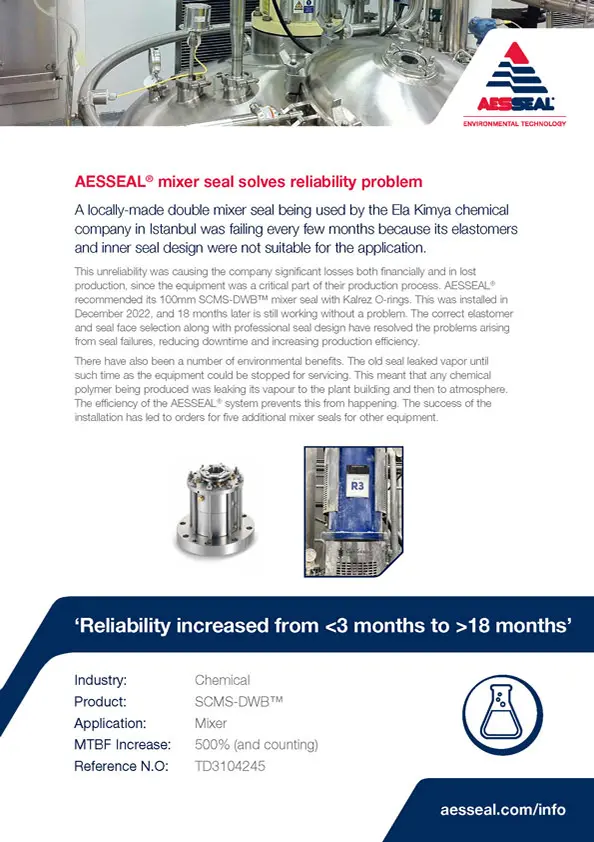

- SCMS-DWB™ - Double Wet (liquid barrier) and integral load-carrying Bearing

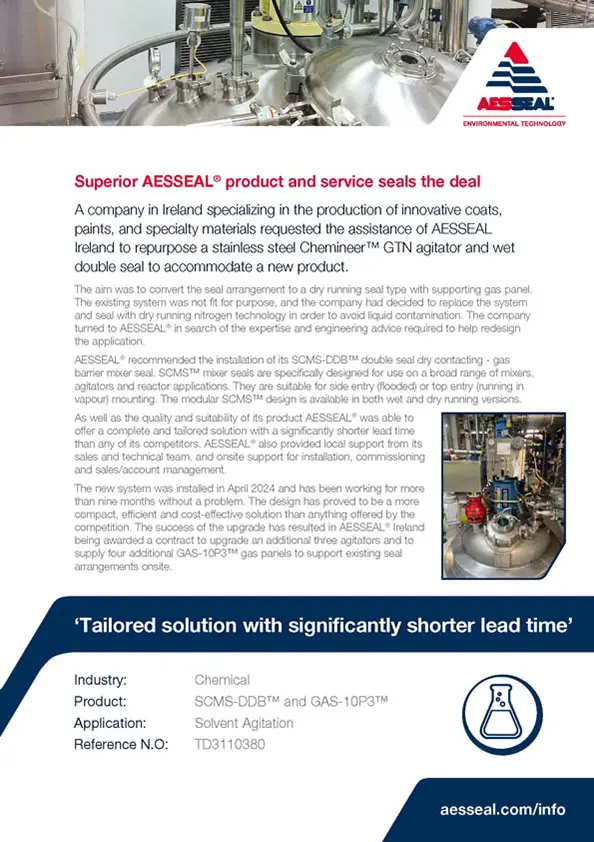

- SCMS-DDB™ - Double Dry (contacting - gas barrier) and integral load-carrying Bearing
- SCMS-DWBG™ - Double seal Wet (liquid barrier) and integral load-carrying Bearing and Glass-lined flange
- SCMS-DDBG™ - Double Dry (contacting - gas barrier) and integral load-carrying Bearing and Glass-lined flange
- SCMS-DG™ - Dry Gas seal full non-contacting
- SCMS-DGG™ - Dry Gas seal full non-contacting with Glass-lined flange
- SCMS-DGO™ - Dry Gas seal non-contacting inboard contacting Outboard
- SCMS-DGOG™ - Dry Gas seal non-contacting inboard contacting Outboard with Glass-lined flange
